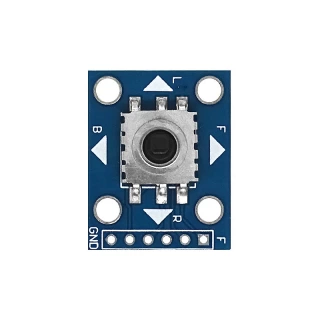

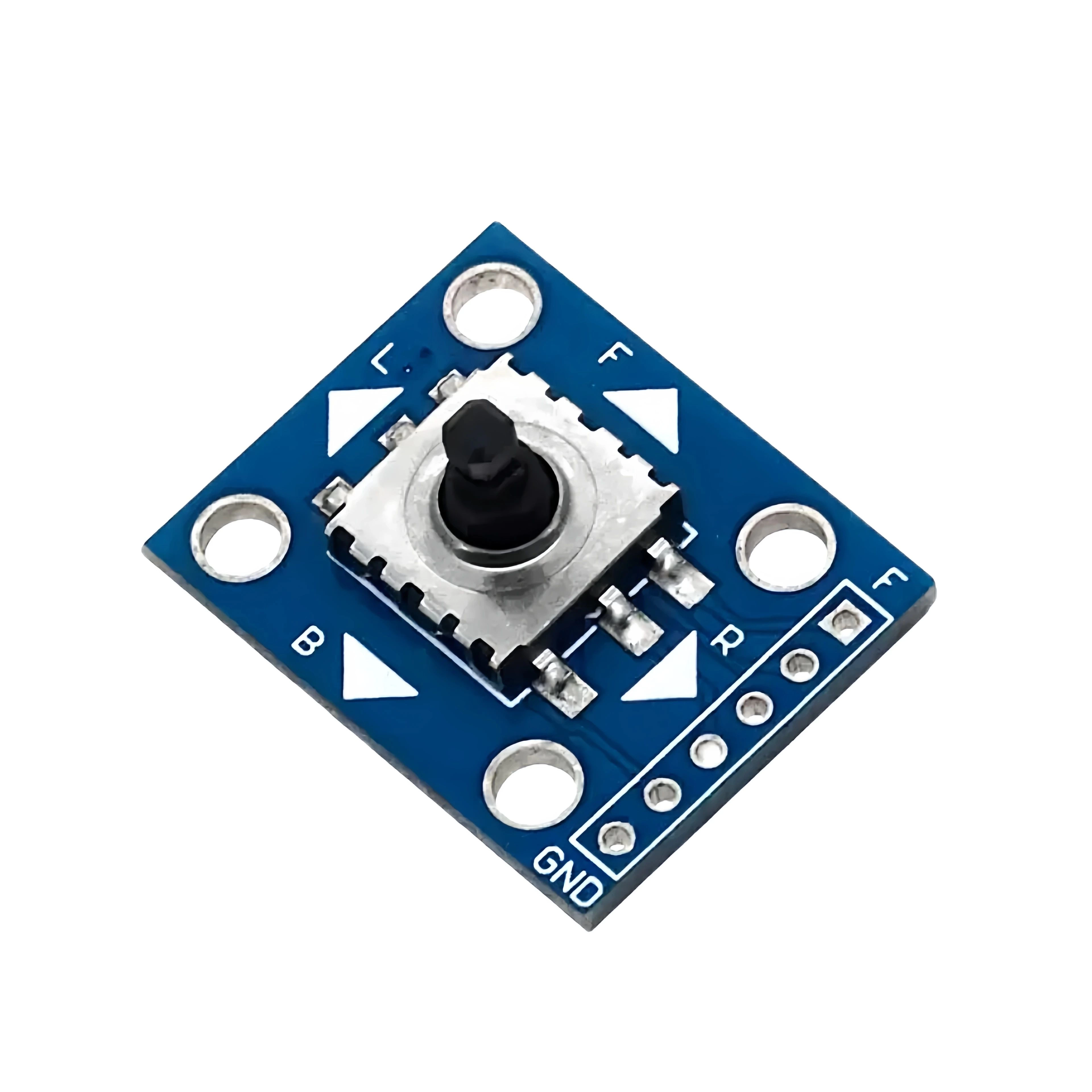

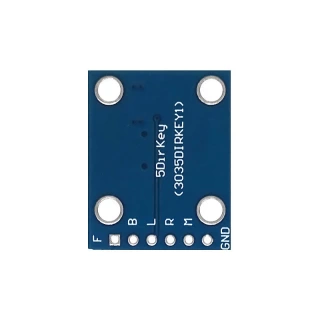

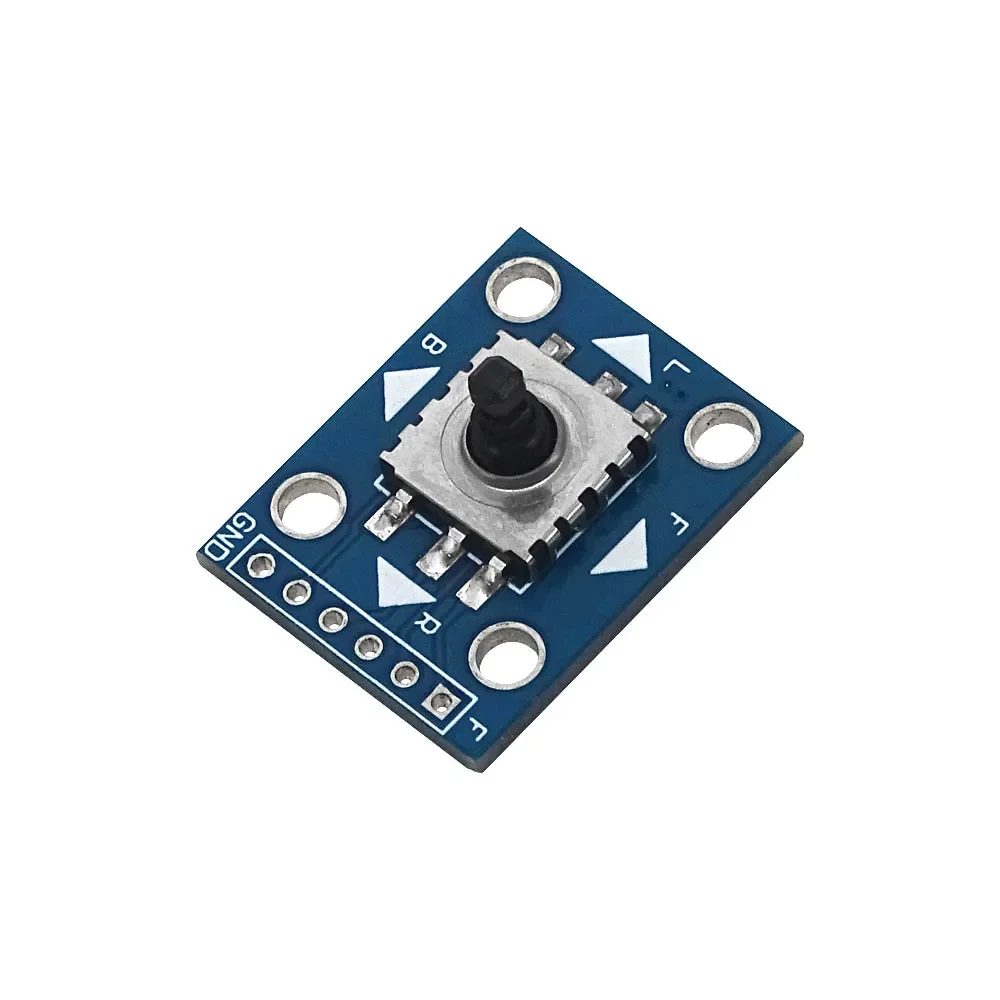

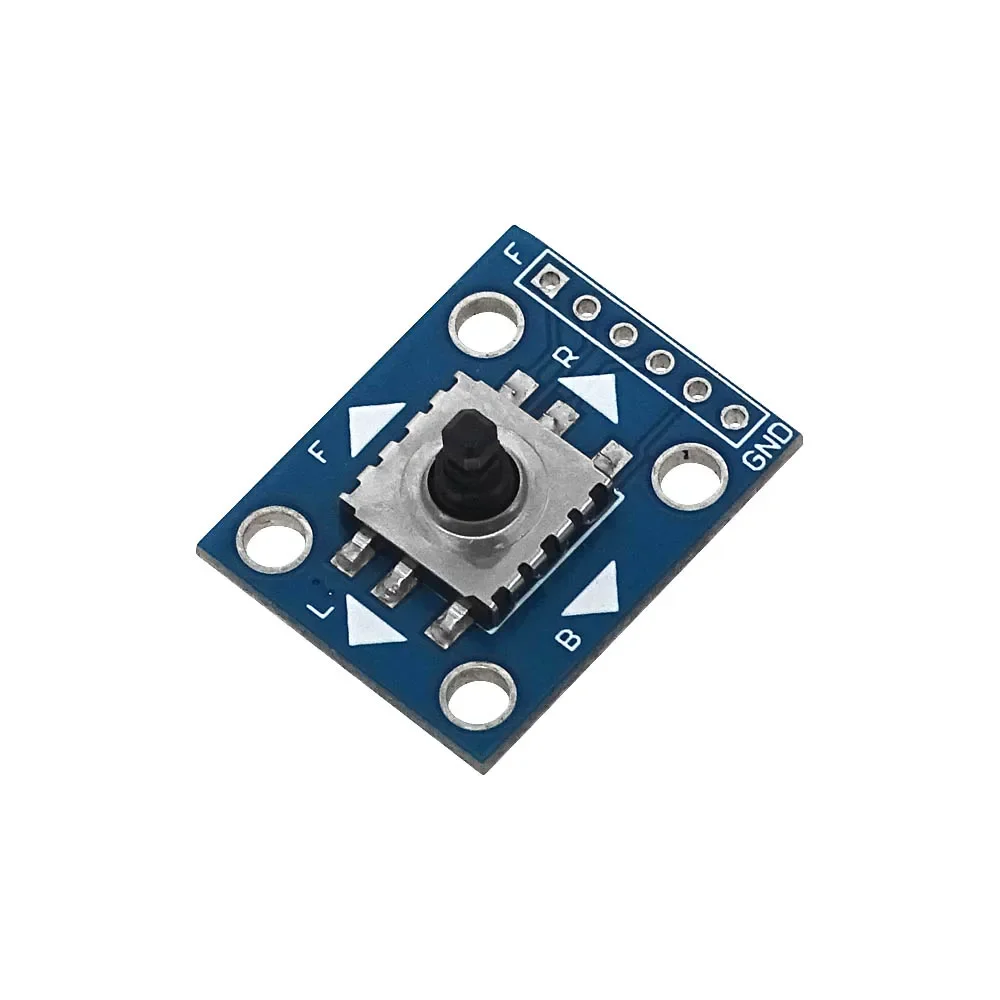

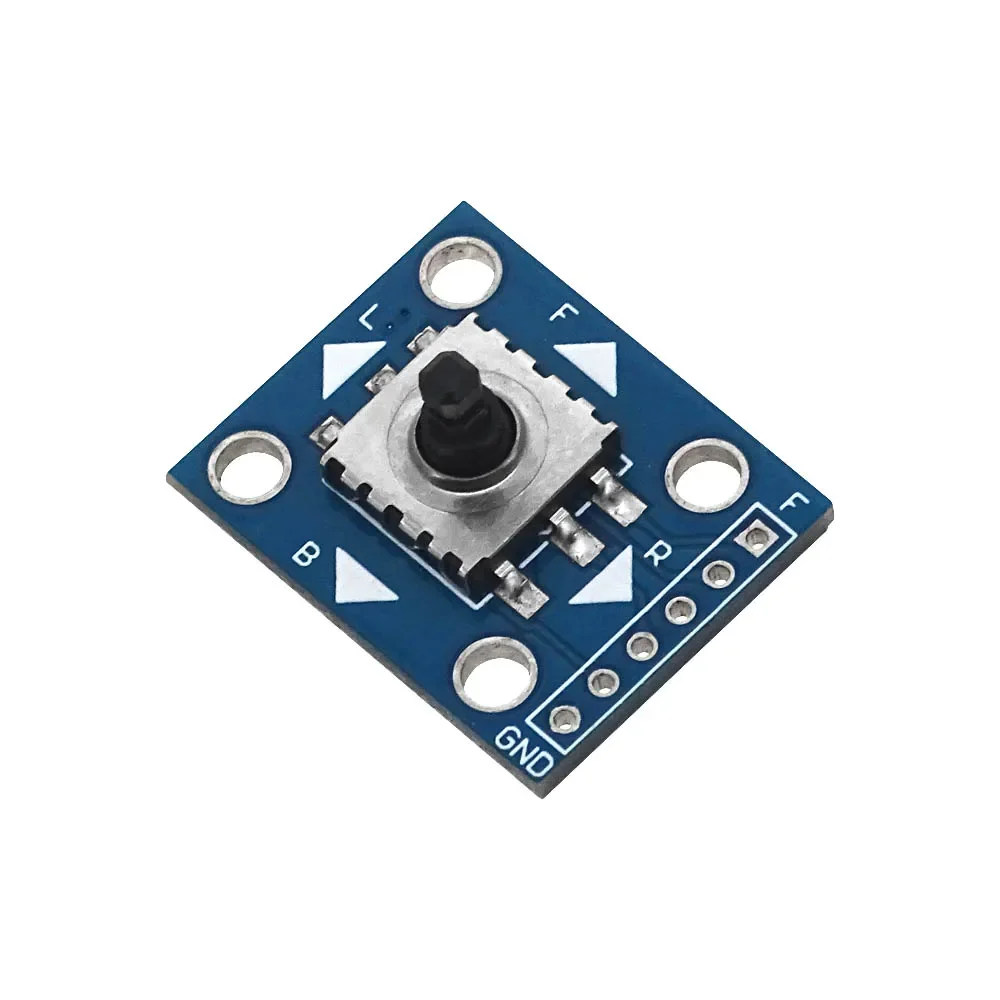

Five way navigation button module 5D joystick microcontroller independent keyboard switch
Description
Instructions for using the five way button switch
1. Weld the pins and connect the GND port to the GND of the microcontroller or other modules using a DuPont cable;
2. Connect the pins in five directions to the corresponding microcontroller IO port pins;
3. When the button is pressed, the corresponding IO port will be shorted to GND to set the level status of the IO port to 0. Therefore, the microcontroller is set to a bidirectional IO port mode. When the button is pressed, the level status is 0, and when not pressed, the level status is 1.

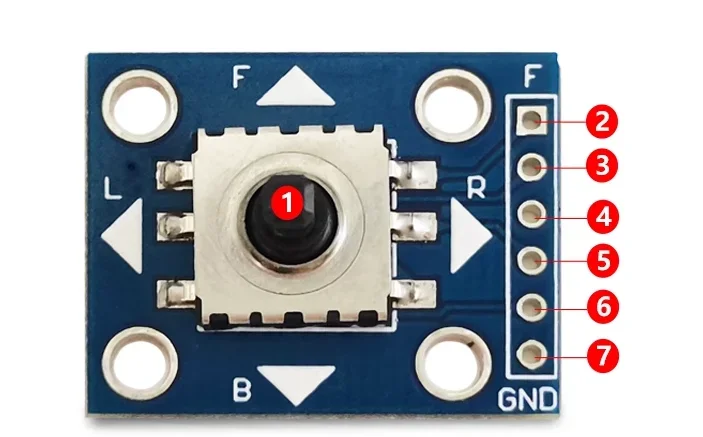

1. Five way patch button: can be moved up, down, left, right, and in the middle
2. Port F: Connect to GND when the button is moved up
3. Port B: Connect to GND when the button is pressed downwards
4. Port L: Connect to GND when pressing the button to the left
5. R port: Connect to GND when pressing the button to the right
6. M port: Connect to GND when the button is pressed from the middle
7. GND port

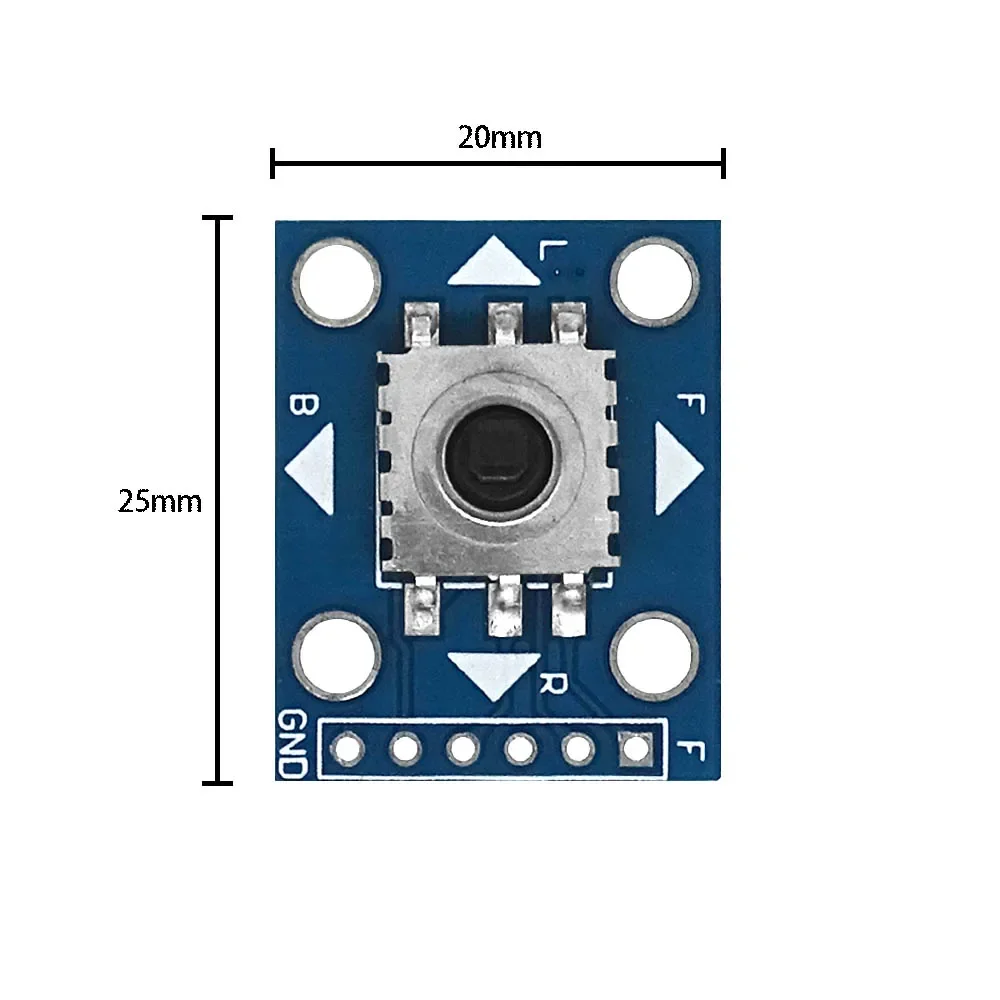

Product size 24*20mm
