1-10PCS MG90S Micro Servo Motor Metal Gear Analog RC Servomotor 180 360 Degree For Mini Car Airplane Helicopter Arduino Robot
Description

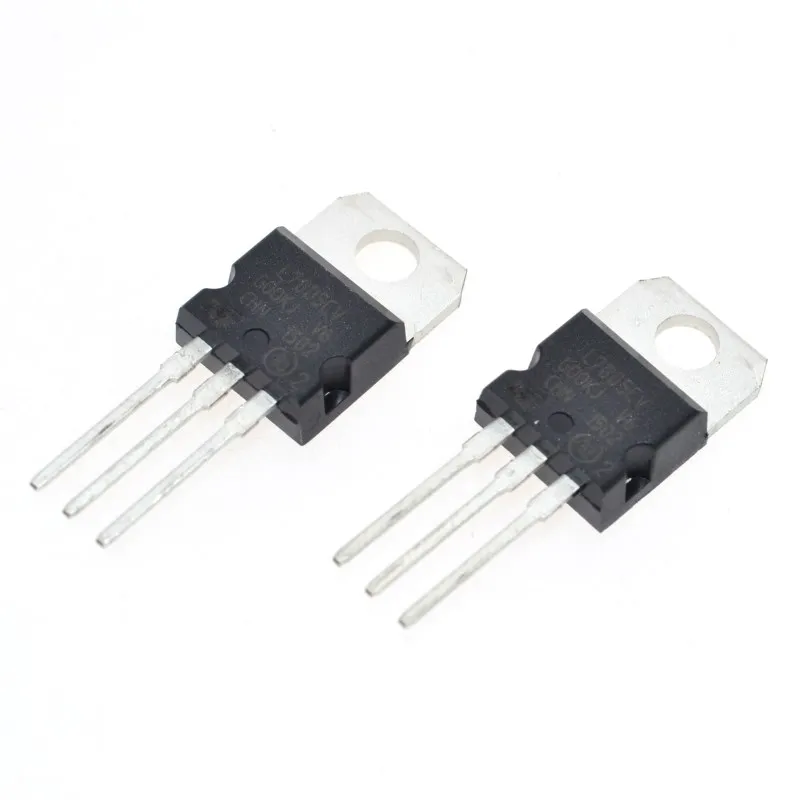

10pcs L7805CV LM7805 L7805 7805 Voltage Regulator IC 5V 1.5A TO-220 make in chinaUSD 0.79 / piece /lot 1

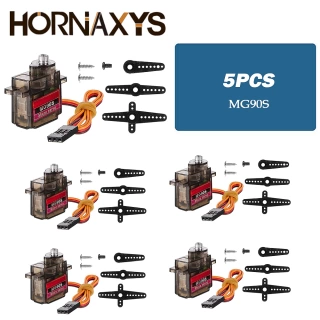

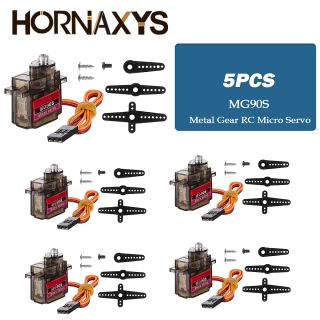

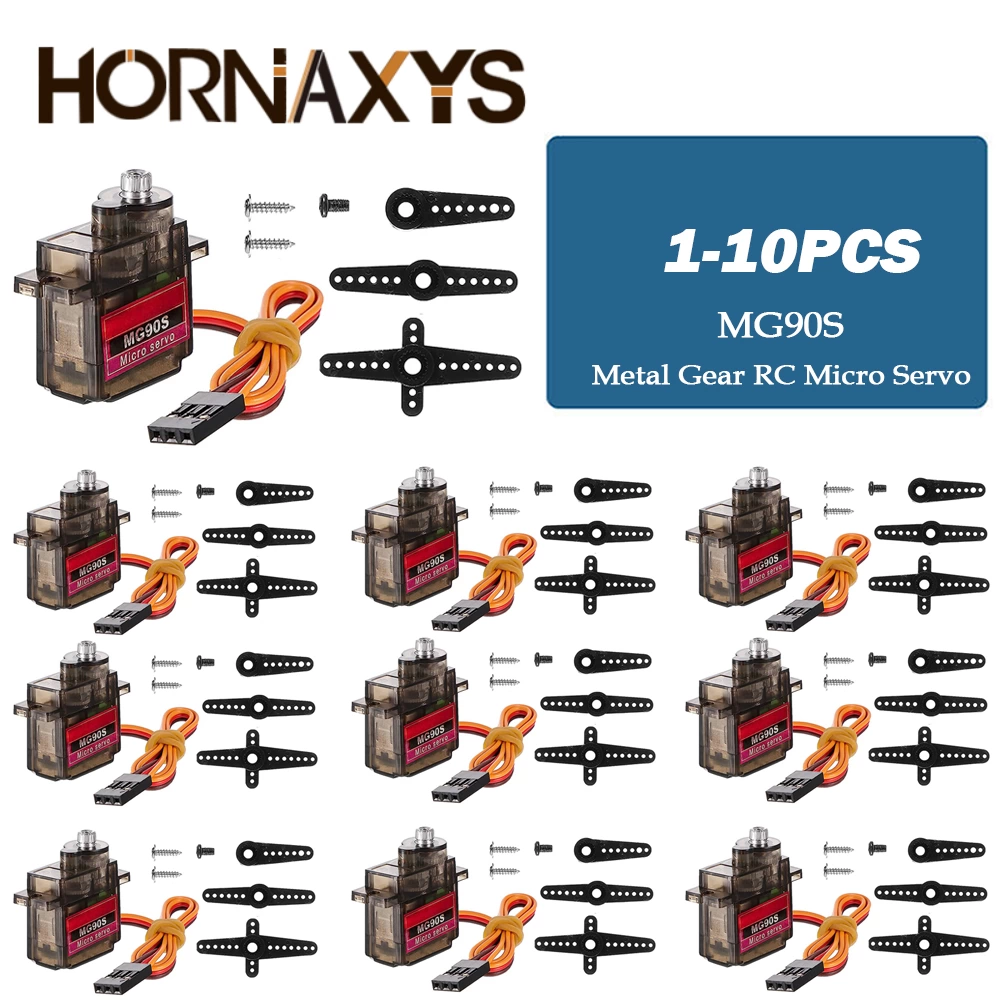

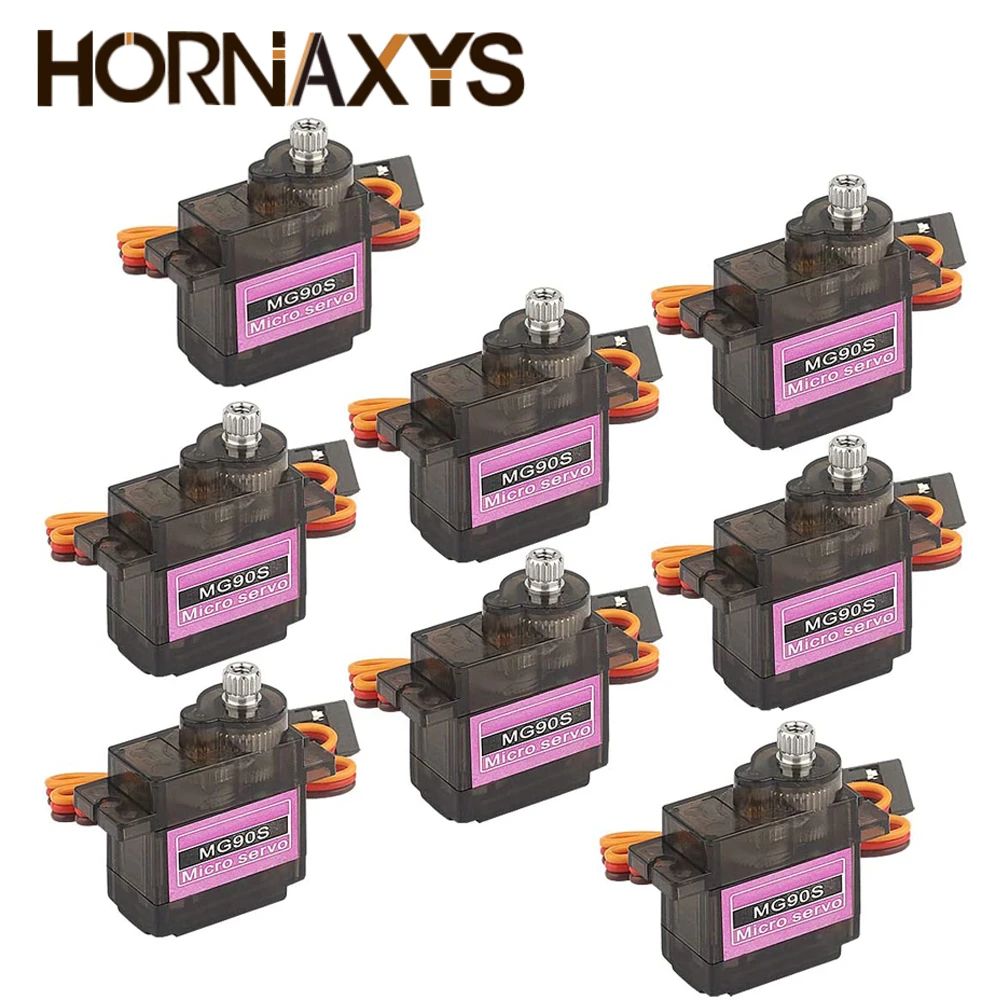

1-10PCS MG90S Micro Servo Motor Metal Gear Analog RC Servomotor 180 360 Degree For Mini Car Airplane Helicopter Arduino Robot
Specification:
Product Model: MG90S

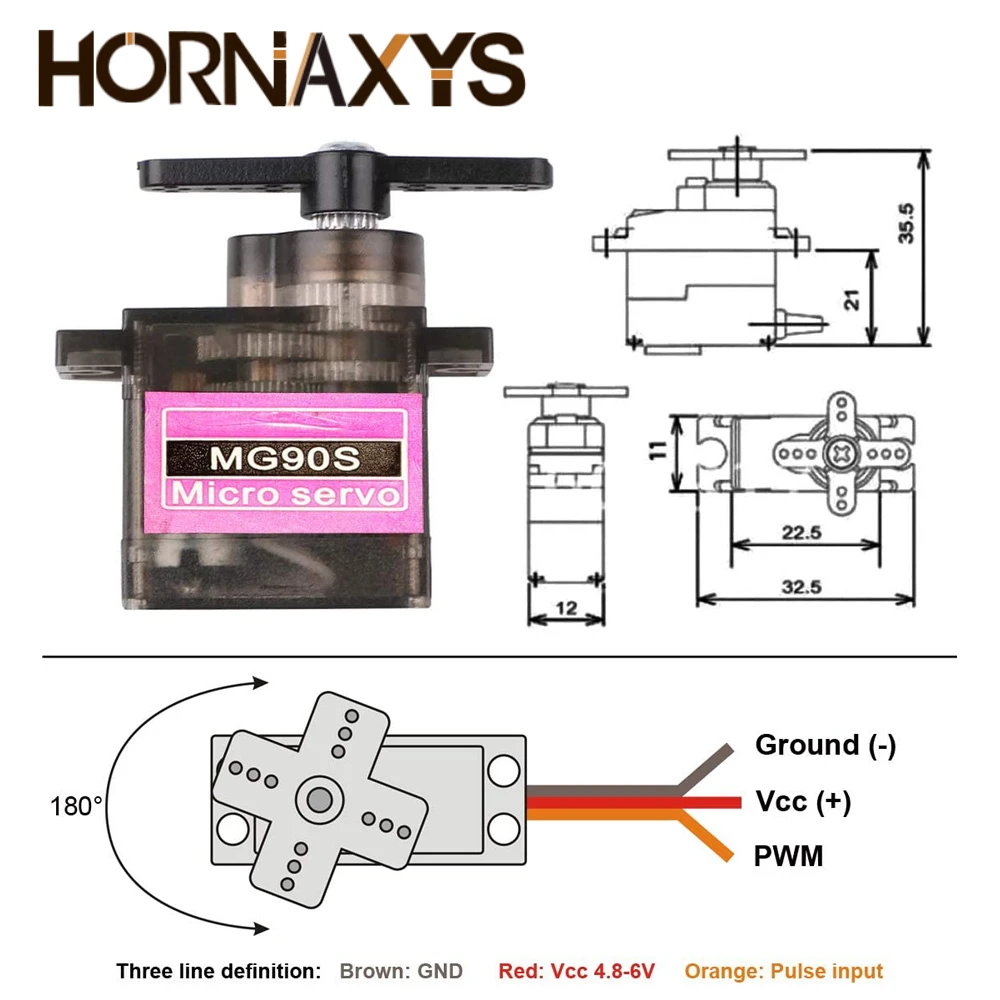

Dimensions: 22.8 x 22.4 x 12mm
Working Torque: 2kg/cm
Reaction Speed: 0.11 seconds / 60 degrees (4.8V)
Operating Temperature: 0 ℃- 55 ℃
Dead Band Width: 5msec
Plug Type: JR, FUTABA General
Rotation Angle: 0-180°/360°
Operating Mode: Analog
Operating Voltage: 4.8V
Gear Material: Aluminium+Plastics/All Metal

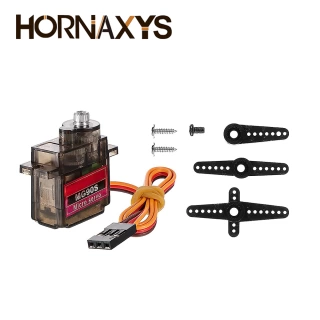

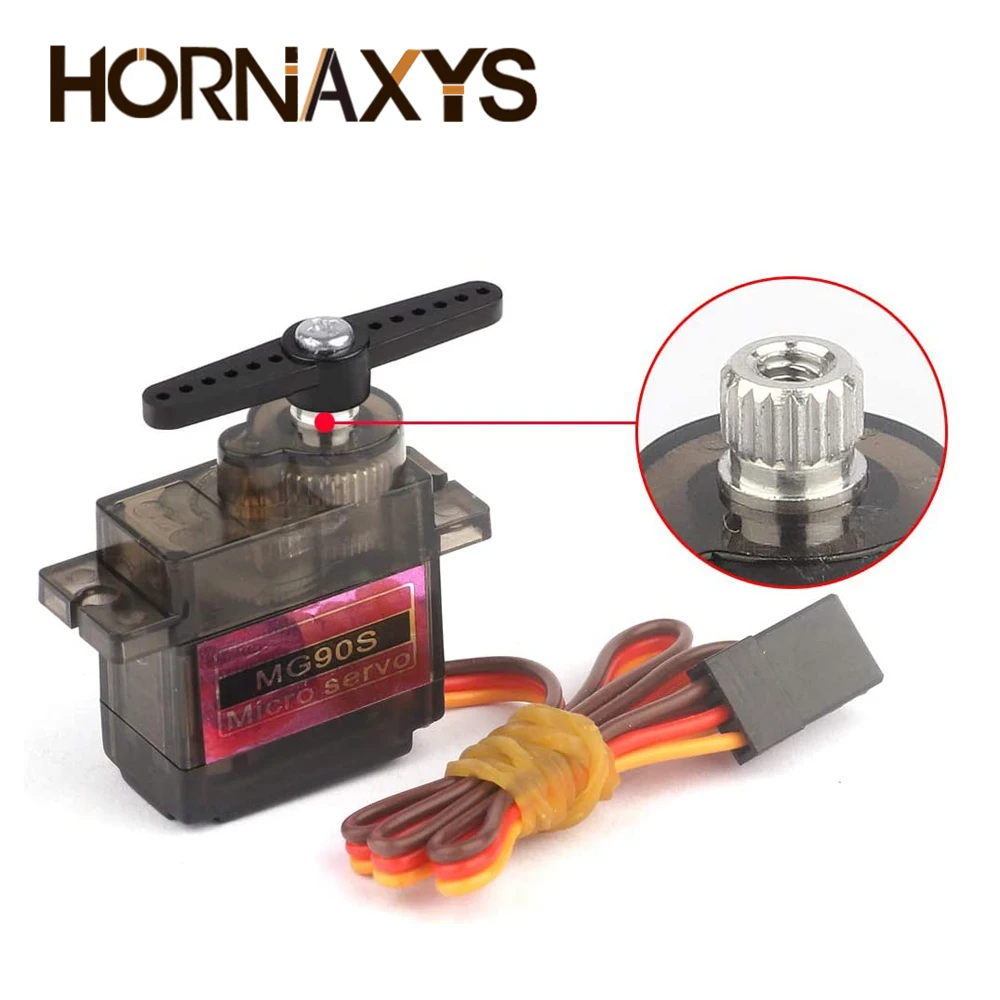

Accessories: Multi-arm, Fixing screws(AS the picture shows)

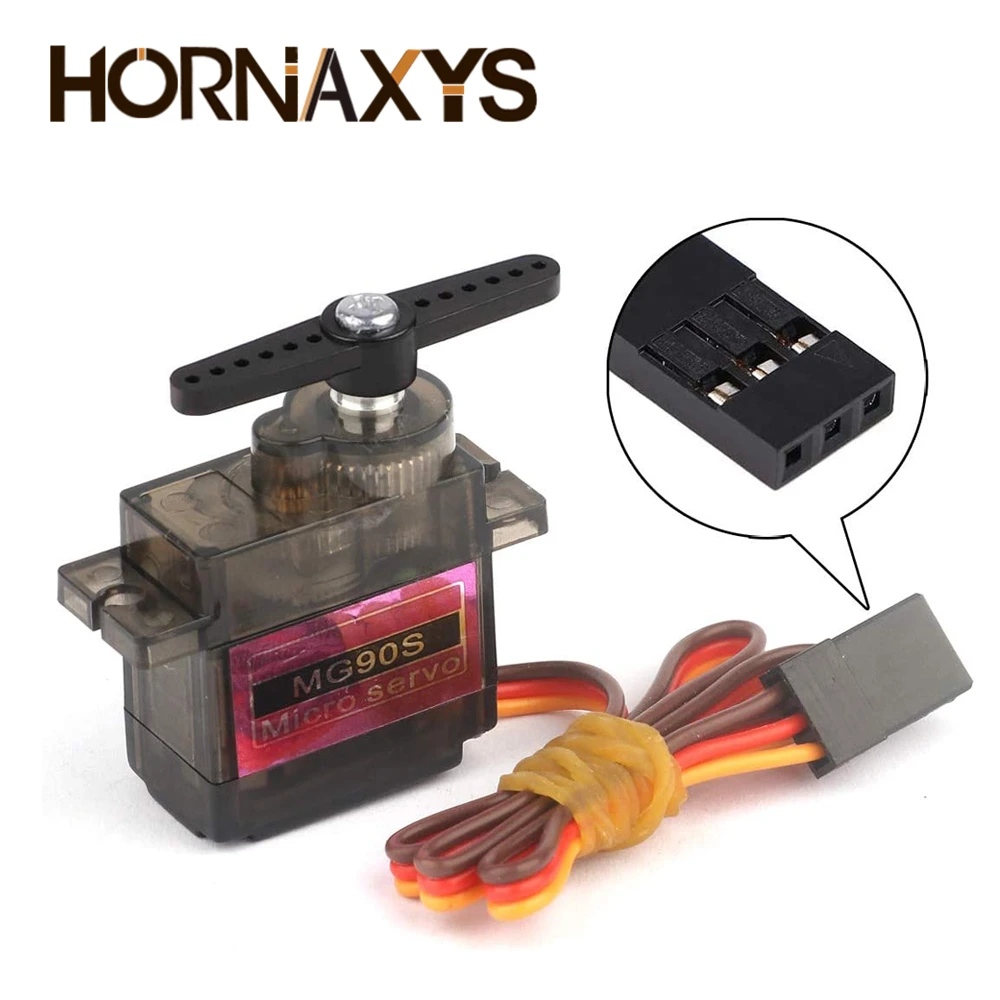

Connector Wire: 250mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Scope: Small and medium-sized electric model aircraft and model
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180 Degree
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
For 180 degree servo, please use a professional PWM Servo Controller to control the angle
